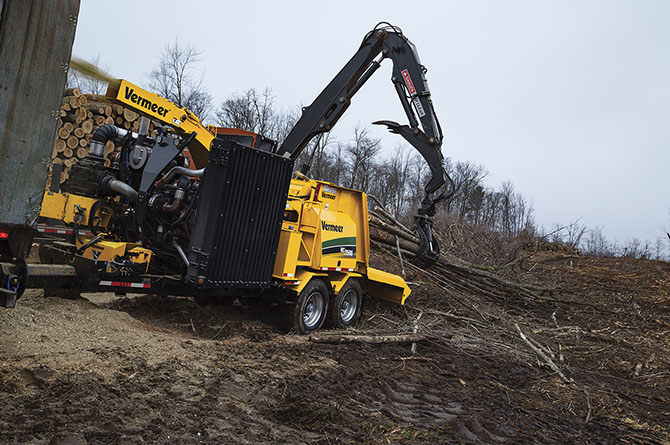

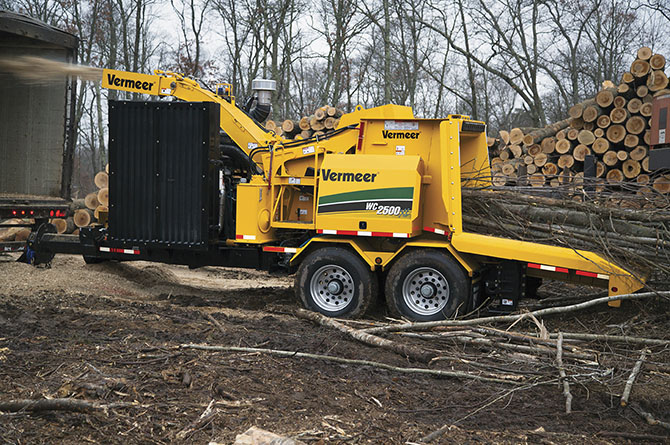

WC2500XL Whole Tree Chipper
- Expand your revenue stream with more flexibility
- Designed with the operator in mind
- Focus more on productivity and less on maintenance
General
| Manufacturer | Vermeer |
| Model | WC2500XL Whole Tree Chipper |
| Category | Landscape, Pipeline, Renewable Energy, Tree Care, Wood Waste |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Maximum Length (Operation) | 29.8ft (9.1m) |
| Maximum Length - Transport | 29.8ft (9.1m) |
| Maximum Width (Transport) | 108in (274.3cm) |
| Maximum Height (Transport) | 10.9ft (3.3m) |
| Weight | 38000lbs (17236.5kg) |
| Tongue Weight | 7500lbs (3401.9kg) |
| Sound Power | 121 |
Engine - Option one
| Make and Model | Cummins QSX15 Tier 4 Final |
| Number of Cylinders | 6 |
| Gross Horsepower (Maximum) | 600hp (447.4kw) |
| Torque (Max) | 2050ft-lb (2779.4Nm) |
| Fuel Tank Capacity | 200gal (757.1L) |
| Max Fuel Consumption | 31gph (117.3lph) |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner | Two-stage direct flow |
| Oil Filter | Spin-on |
| Recommended Oil | CES 20078 or 20081 |
| Oil Volume with Filter | 52qt (49.2L) |
| Maximum Angle of Continuous Operation | 31deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 23gal (87.1L) |
| Alternator | 105 |
| Fan | Reversible |
| Clutch Type | PT Tech electronically controlled dry |
| Clutch Drive Engagement | Hydraulic |
Drum/Disc Cutting System
| Material Capacity | 25in (63.5cm) |
| Thickness | .5in (1.3cm) |
| Width | 34in (86.4cm) |
| Diameter | 36in (91.4cm) |
| Speed | 1169 rpm |
| Weight With Shaft | 3163lbs (1434.7kg) |
| Safety Lock - Number of Positions | 4 |
| Type | Adjustable |
| Knife Thickness | .6in (1.6cm) |
| Material | A8 chipper steel |
| Useable Edges | 1 |
| Knife Size | 17 |
| Number of Bolts/Knife | 5 |
| Replaceable Threaded Knife Block | Hex nut |
| Fixture Method | Bolt |
| Bedknife Size | 34" wide |
| Bedknife Thickness | 1.5in (3.8cm) |
| Bedknife Material | Cold-formed low-carbon bar |
| Bedknife - Number of Useable Edges | 2 |
| Number of Pockets | 4 |
| Replaceable Wear Plates | Yes |
| Number of Replaceable Wear Plates | 8 |
Cutter Drive Components - Engine Option One
| Number of Bearings | 2 |
| Bore | 5.4in (13.8cm) |
| Type | Pillow block |
| Manufacturer | Dodge |
| Dynamic Capacity | 166000lbs (75296.3kg) |
| Static Capacity | 236000lbs (107047.8kg) |
| Belt Idler/Tensioner | Slide engine |
| Belt Type | 12 rib 5 V |
Standard Infeed System
| Infeed Roller Width | 34in (86.4cm) |
| Maximum Feed Height | 27in (68.6cm) |
| Infeed Roller Weight | 575lbs (260.8kg) |
| Infeed Roller Diameter | 28in (71.1cm) |
| Tooth Design | Straight knives |
| Drive Motor | WS-series |
| Drive Planetary | Auburn Model 9 |
| Drive Displacement | 6.9cu-in (113.1cu-cm) |
| Drive Manufacturer | White |
| Feed Roller Down Pressure | 1530 |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | One upper, one conveyor |
| Number of Knives | 12 |
| Feed Roller Distance to Drum | 1in (2.5cm) |
| Feed Roller Speed | 98ft/min (29.9m/min) |

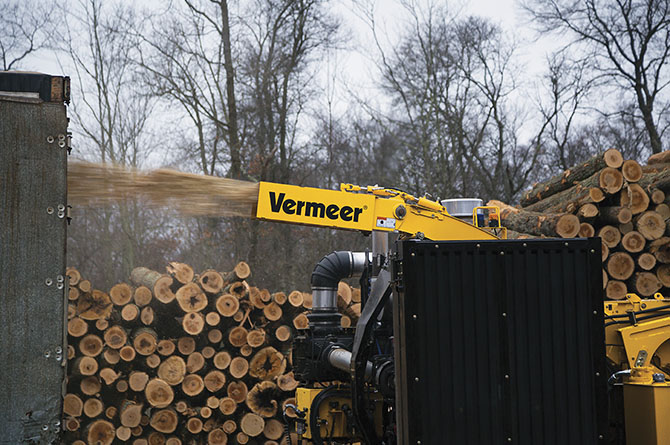

Discharge System
| Chute Height | 132in (335.3cm) |
| Bottom Thickness | .1in (.3cm) |
| Bottom Replaceable Wear Plate | AR 400 |
| Wear Plate Thickness | .2in (.5cm) |
| Top Thickness | .2in (.5cm) |
| Side Wall Thickness | .2in (.5cm) |
| Deflector Thickness | .2in (.5cm) |
| Rotation Type | Hydraulic |
| Rotational Lock | Hydraulic |
| Side Deflector Angle | 14deg |
| Up Deflector Angle | 22deg |
| Down Deflector Angle | 14deg |
Hydraulic System
| Tank capacity | 33gal (124.9L) |
| Recommended Oil Type | Hy-Power 68, 46, or 32 |
| System Type | Open-center |
| Filtration Method | Intake suction screens and return filter |
| Pump Flow at Maximum RPM | 16gpm (60.6L/min) |
| System relief pressure | 4000psi (275.8bar) |
| Auto Reverse PSI | 3750psi (258.6bar) |
| Flow Control | Two - feed roller and infeed conveyor |
| Oil Cooler | 1 |
Electrical System
| System Voltage | 24V |
| Battery | Group 8D 1400 CCA (dual) |
| Standard Gauges | Yes |
| Deluxe Gauges | No |
| Switches | Push button |
| Controller | Danfoss MC-050 |
| Display | DP10 |
| Shutdown System | Yes |
| Radio Remote Control | Yes |
Chassis
| Frame Description | 10" x 4" x .375" wall rectangular tubing |
| Toolbox Description | Lockable |
| Tongue Description | Fixed with skidder grab |
| Tongue Extension | None |
| Hitch Type | Pintle |
| Grapple Handle | 30" wide |
| Fender Description | Jeep style (steel) |
| Axle/Suspension | Tandem axles |
| Type | Leaf spring |
| Manufacturer | Dexter |
| Capacity | 18740 |
| Tires | 385/65R22.5 Super Single |
| Wheels | 22.5 x 14 aluminum |
| Brake Type | Air |
| Trailer Light Type | LED |
Other Options
| Special Paint | Yes |
| Extended Warranty | Yes |
| Preventative Maintenance | Yes |
| Adjustable Height Discharge Chute | No |
Infeed Conveyor
| Feed Table Width | 98in (248.9cm) |
| Feed Table Length - Option One | 10ft (3m) |
| Feed Conveyor Type | Dual independent chain |
| Material Construction | .50" thick |
| Infeed Slope | 6deg |
| Number of Infeed Chains | 2 |
